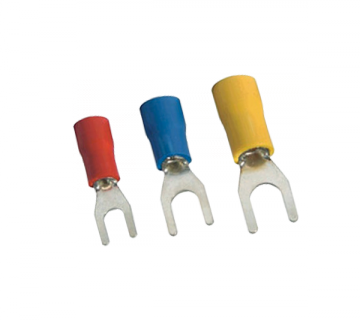

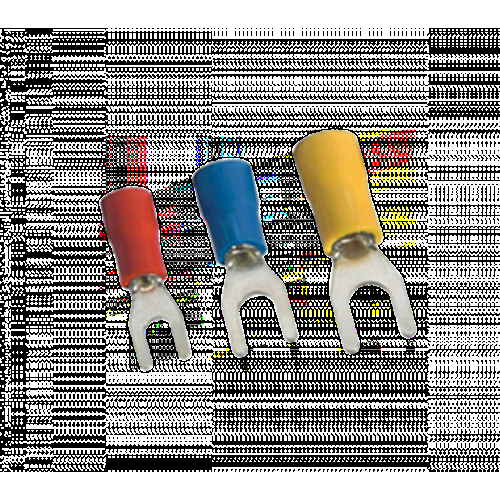

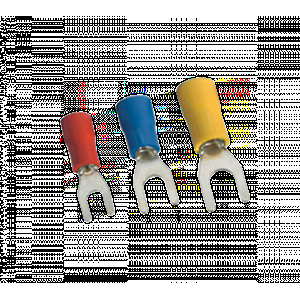

TERMINALI A FORCHETTA ISOLATI BLU 1,5 > 2,5MM TYPE SVS 1.25-5

Technical Characteristics:

- Material: brass alloy with galvanic tin coating and insulated with polyvinylchloride

- Colours: offered in three main colours: red, blue and yellow, as each colour corresponds to different section of multicore conductor

- For multicore cables with sections to 25 mm2 for the cable terminals type „?" and 6 mm2 for all the others

Mounting:
by mechanical pressing using crimping pliers via mechanical pressing of the terminal and the cable.

Advantages:
- The insulation of the terminals protects from direct contact with conductive parts and adjoining connections
- Easy and quick mounting
- High quality and reliability
- Wide range of application
- Variety of options of terminals, as for each type, it is necessary to select the suitable pliers for pressing

Functions:

- Connecting of multicore conductors without welding
- Mounting of multicore conductors in terminals and of switches, thermoregulators, circuit breakers and other electrical devices

Applications:
- Automotive industry
- Mechanical engineering
- Electricity distribution networks

Standards:
EN 61 238-1
